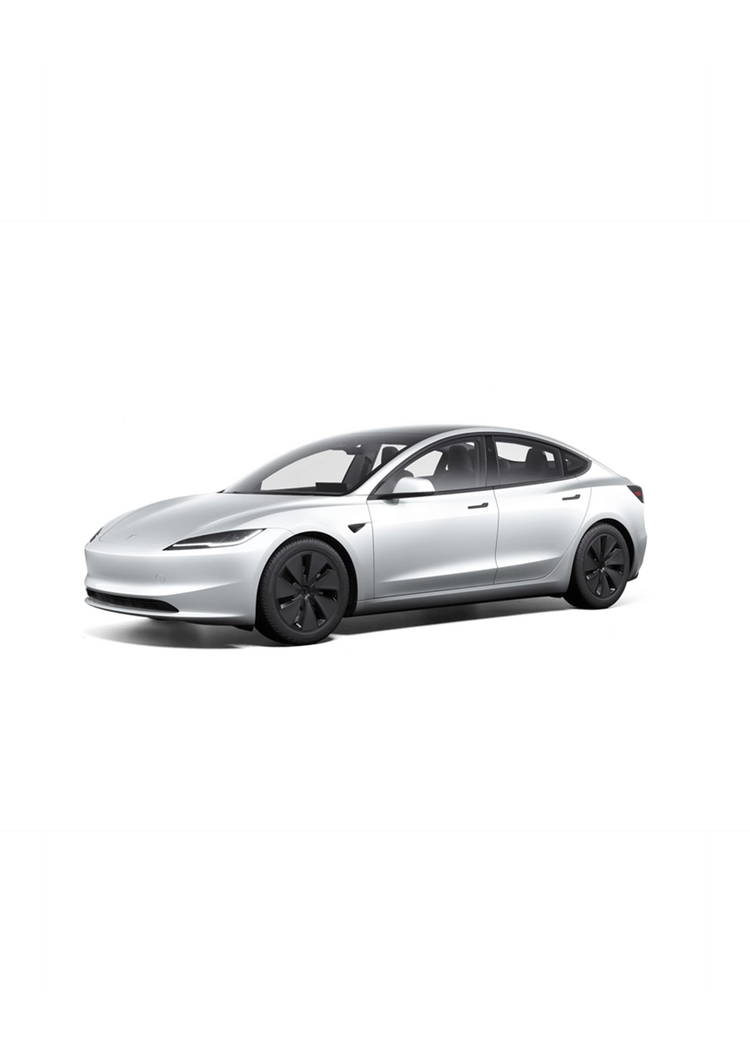

🔋 Tesla Model 3 – Battery Capacity, Charging Times, and EV Charging Specs (RWD, Long Range, Performance)

The Tesla Model 3 is one of the most advanced and efficient electric sedans on the market. All versions of the Model 3 support fast and convenient charging, both at home and on the go, with excellent compatibility across Tesla and public networks.

🔋 Battery Capacity and WLTP Range

Model 3 RWD: LFP battery ~60 kWh usable, range up to 513 km WLTP

Model 3 Long Range AWD: NMC battery ~79 kWh usable, range up to 678 km WLTP

Model 3 Performance (previous gen): NMC battery ~79 kWh usable, range up to 602 km WLTP

⚡ AC Charging (Home or Wallbox)

Maximum AC charging power: 11 kW (3-phase)

Full AC charging time:
▪️ Model 3 RWD: around 6 hours
▪️ Long Range / Performance: around 7–8 hours

To reach the maximum AC charging speed, the Model 3 must be connected to a 3-phase 16A wallbox (11 kW). The car uses a Type 2 connector for AC charging.

⚡ DC Fast Charging (Tesla Superchargers and Public DC Stations)

Maximum DC charging power:
▪️ Model 3 RWD: up to 170–180 kW
▪️ Long Range / Performance: up to 250 kW

DC charging time (10–80%):
▪️ At 250 kW: around 25 minutes
▪️ Up to 275 km of range added in just 15 minutes

All Model 3 variants use the CCS2 connector, which ensures compatibility with both Tesla Superchargers and third-party DC fast chargers across Europe.

✅ Tesla Model 3 Charging Summary (All Versions)

The Tesla Model 3 supports AC charging up to 11 kW and DC fast charging up to 250 kW, depending on the version. With usable battery capacities from 60 to 79 kWh and fast charging speeds, it offers one of the best charging experiences in the EV segment – at home and on the road.

👉 All compatible chargers for the Tesla Model 3 (RWD, Long Range, Performance) are listed below.
