Adapter dla aut Type 1- z USA lub starszych Europejskich. Pozwala na wykorzystanie ładowarek Typu 2.

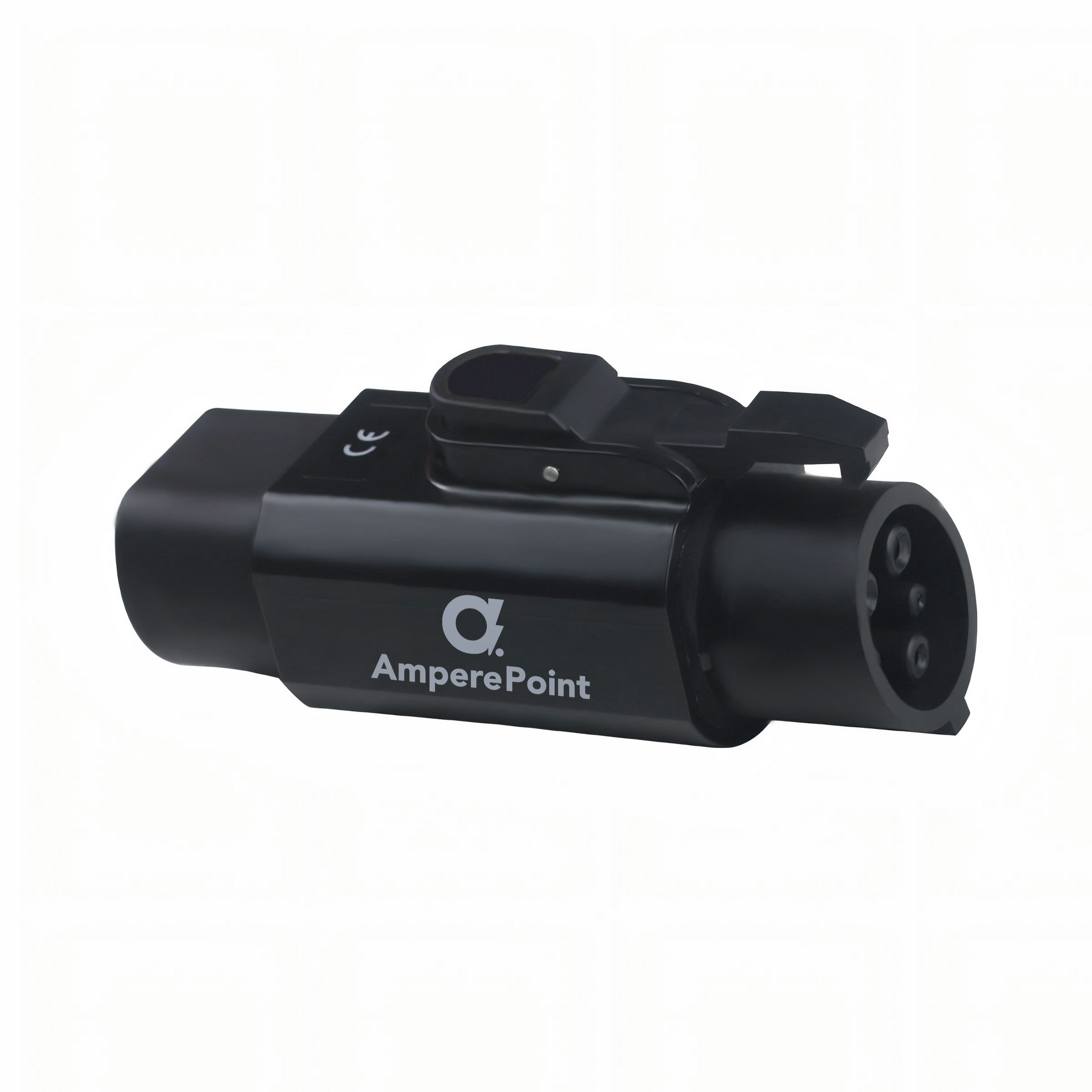

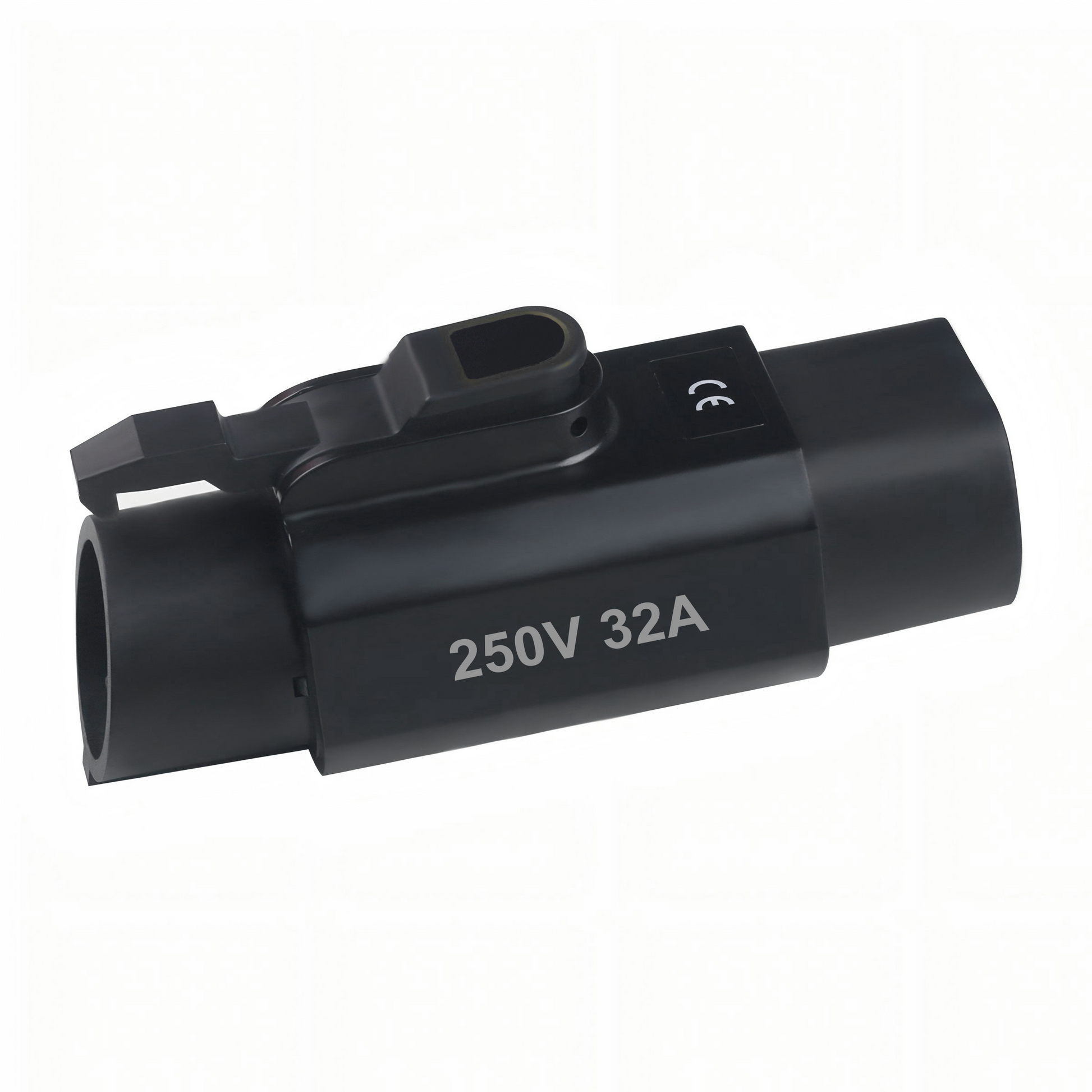

Adapter Type 1 (male) – Type 2 (female)

Standard: IEC 62196 and SAEJ1772

Max: 32A 250V AC
Insulation resistance: >10MΩ (DC500V)
Contact resistance: 0.5mΩ Max
Withstand voltage: 2000V AC/5S
Plastic shell fire rating: UL94 V-0
Product insertion and unplugging force: 45N < F < 80N
Protection level: IP55
Shell: heat shrinkable plastic
Conductor: copper alloy, silver plating on the surface
Working temperature: -30°C to +50°C

CE certificate
