Type 2 EV Charger is compatible with all-electric vehicles and plug-in hybrids. Full compliance with IEC 61851 and IEC 62196 standards. Dustproof and waterproof - IP66.The charger is compatible with all-electric cars and hybrids equipped with a Type 2 socket. Aluminum body and WIFI (Tuya app).

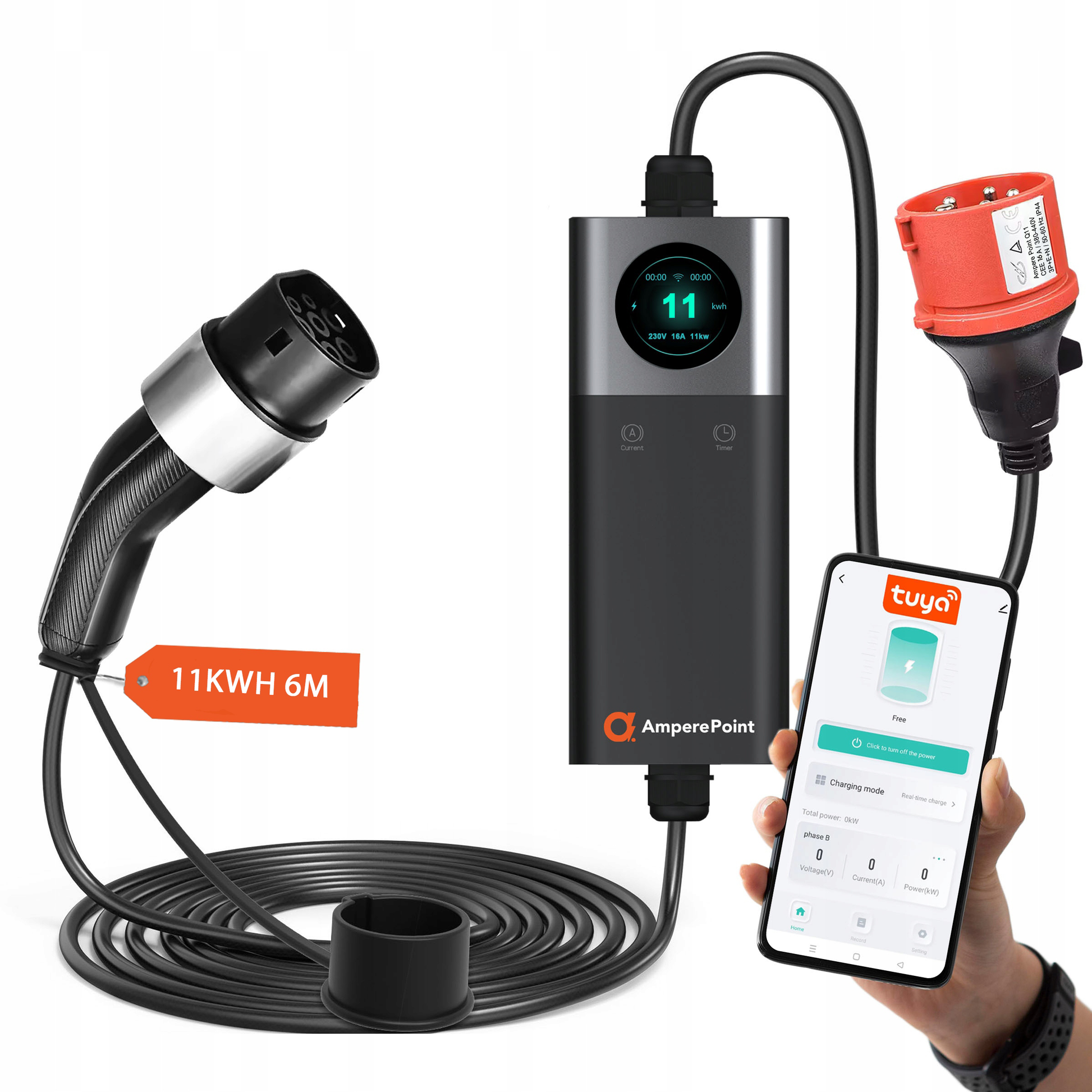

Ampere Point EV Portable Car Charger 16A Q11⚡ Video presentation of our “Q” series ⚡https://www.youtube.com/watch?v=yRhA6_IHH7Q&t=66s
Compatible with both electric vehicles and plug-in hybrid vehicles.

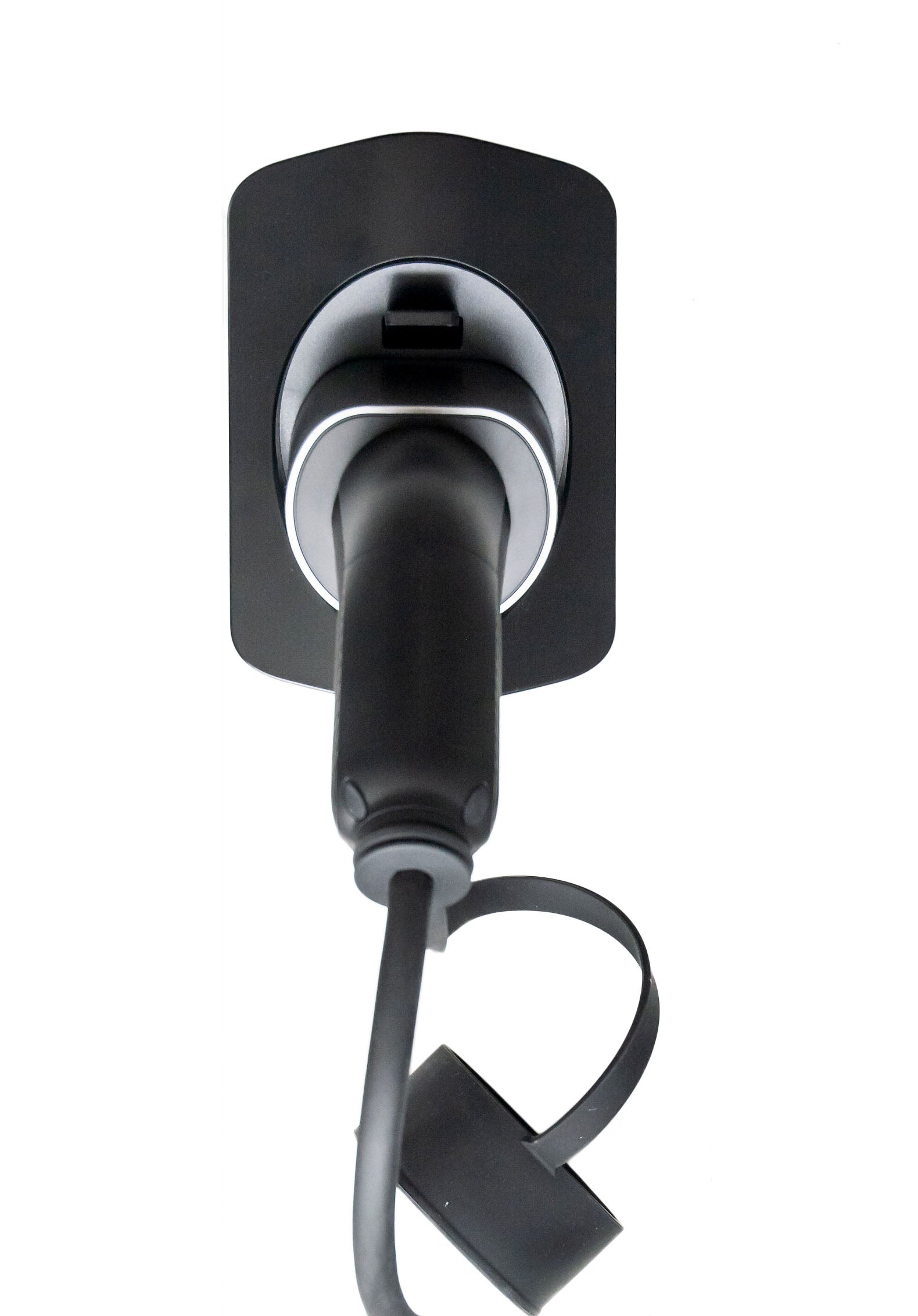

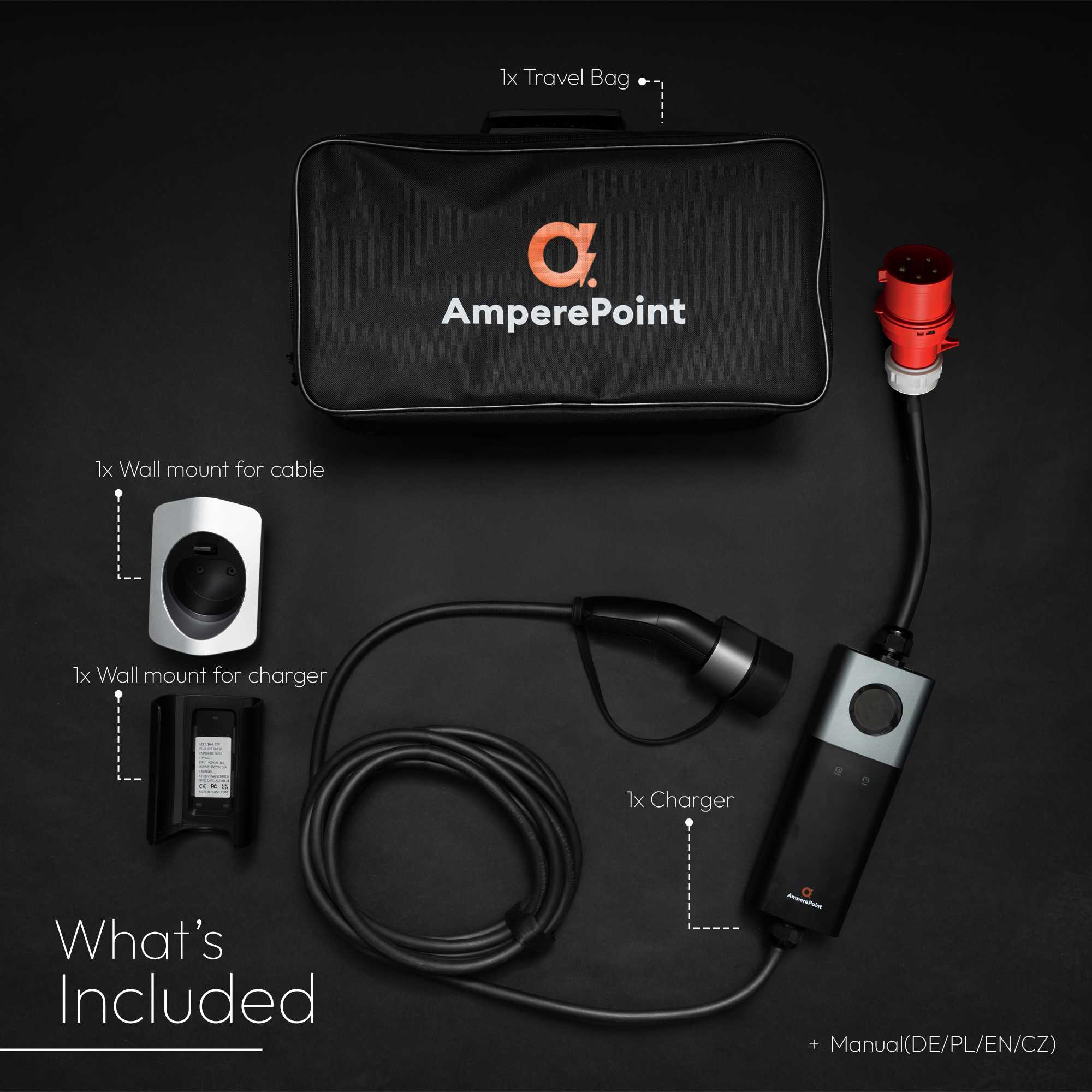

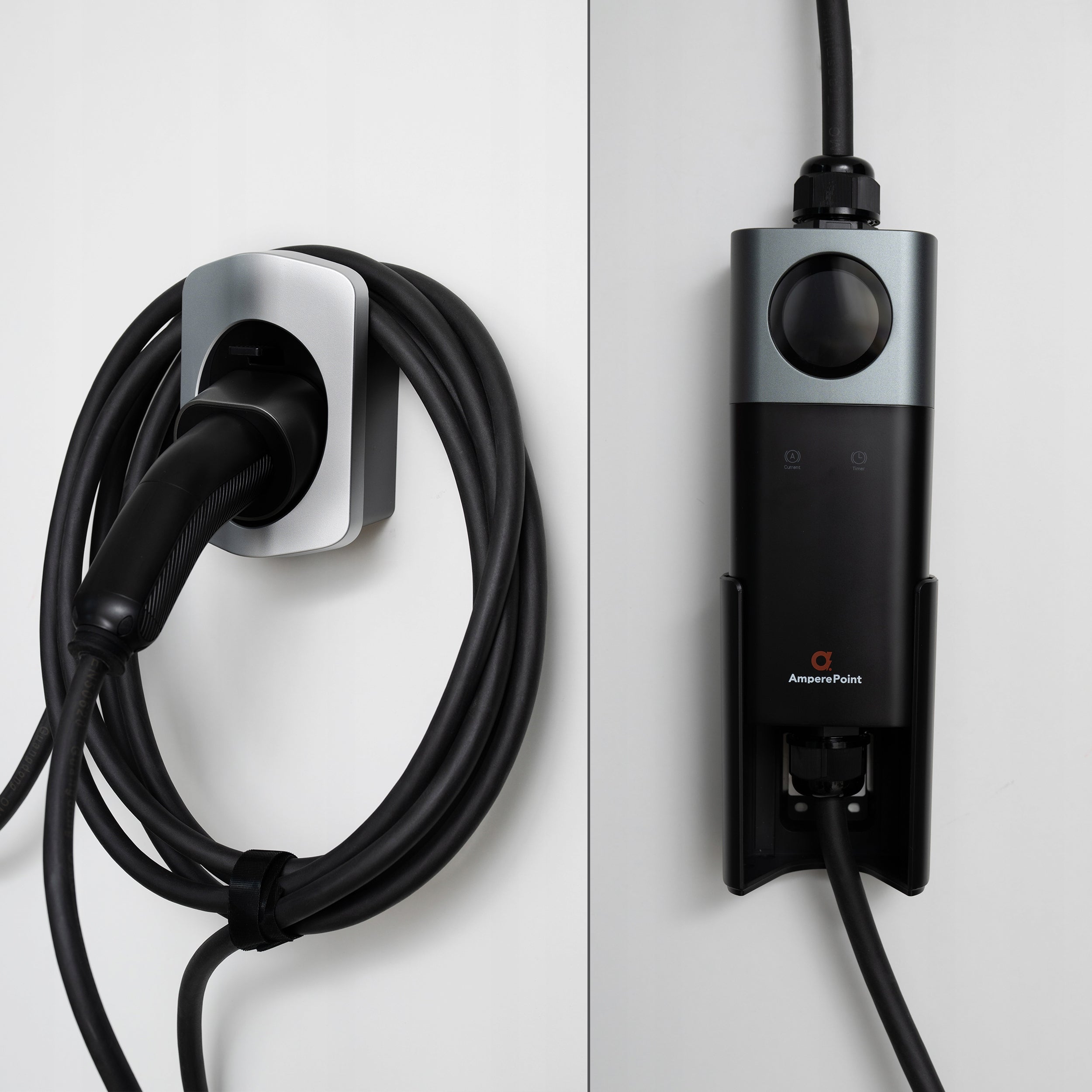

⚡ 6M cable⚡ 11 kW power⚡ Display screen⚡ Carrying case⚡ Wall mount⚡ Plug holder⚡ Wi-Fi and Tuya Smart mobile app

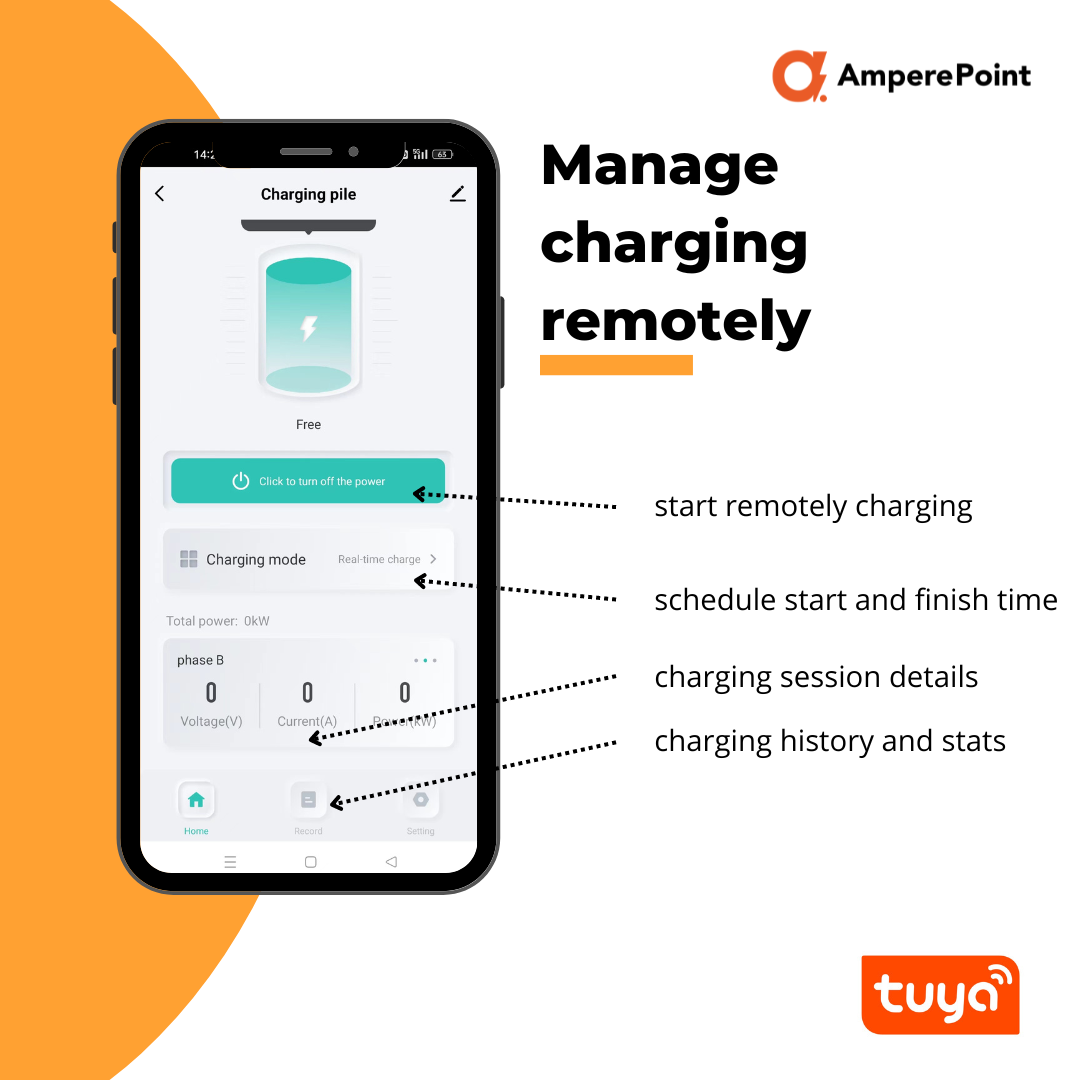

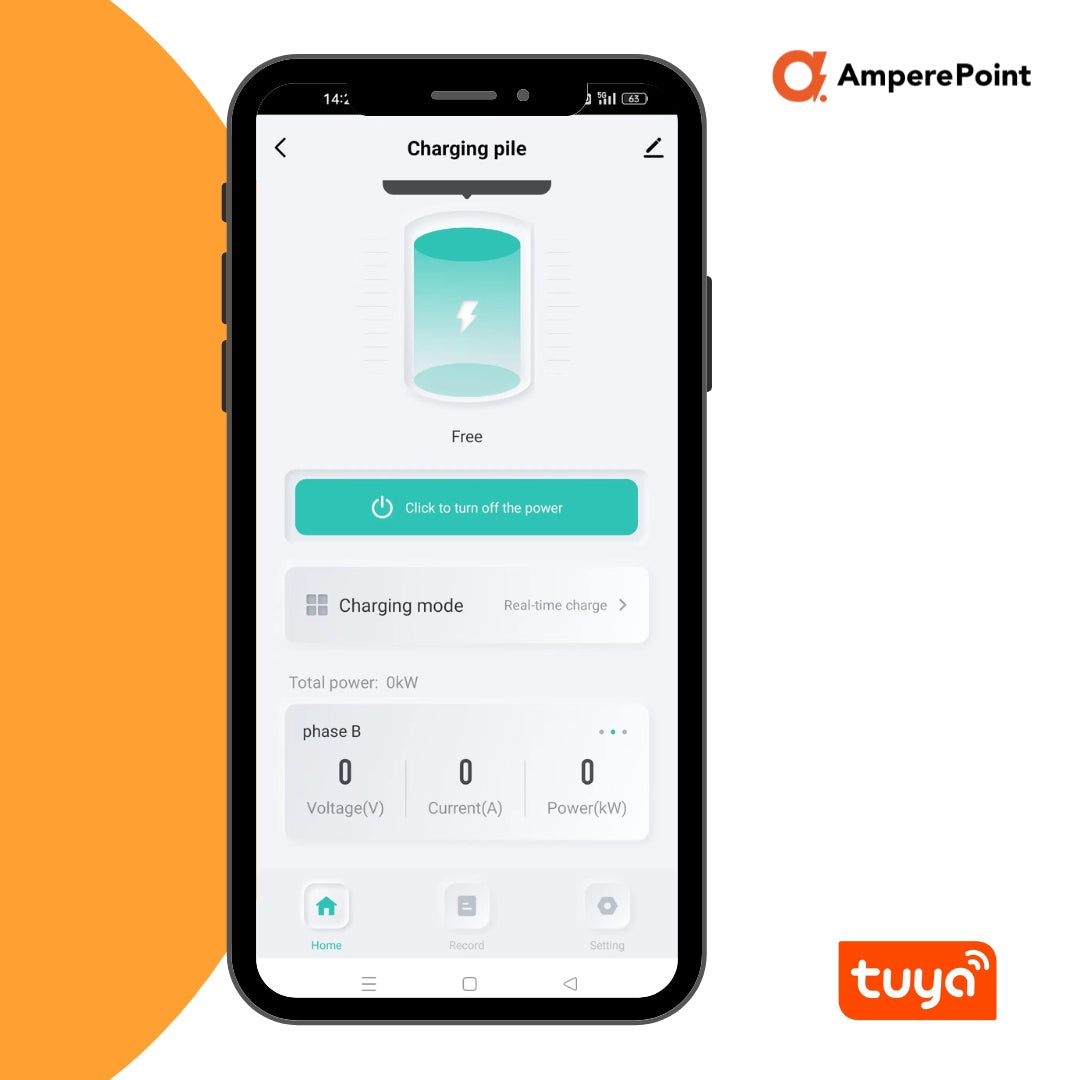

The aluminum housing, minimalist design, and Wi-Fi/Bluetooth connectivity with Tuya integration allow not only full control over the charger, but also seamless integration with your smart home system.

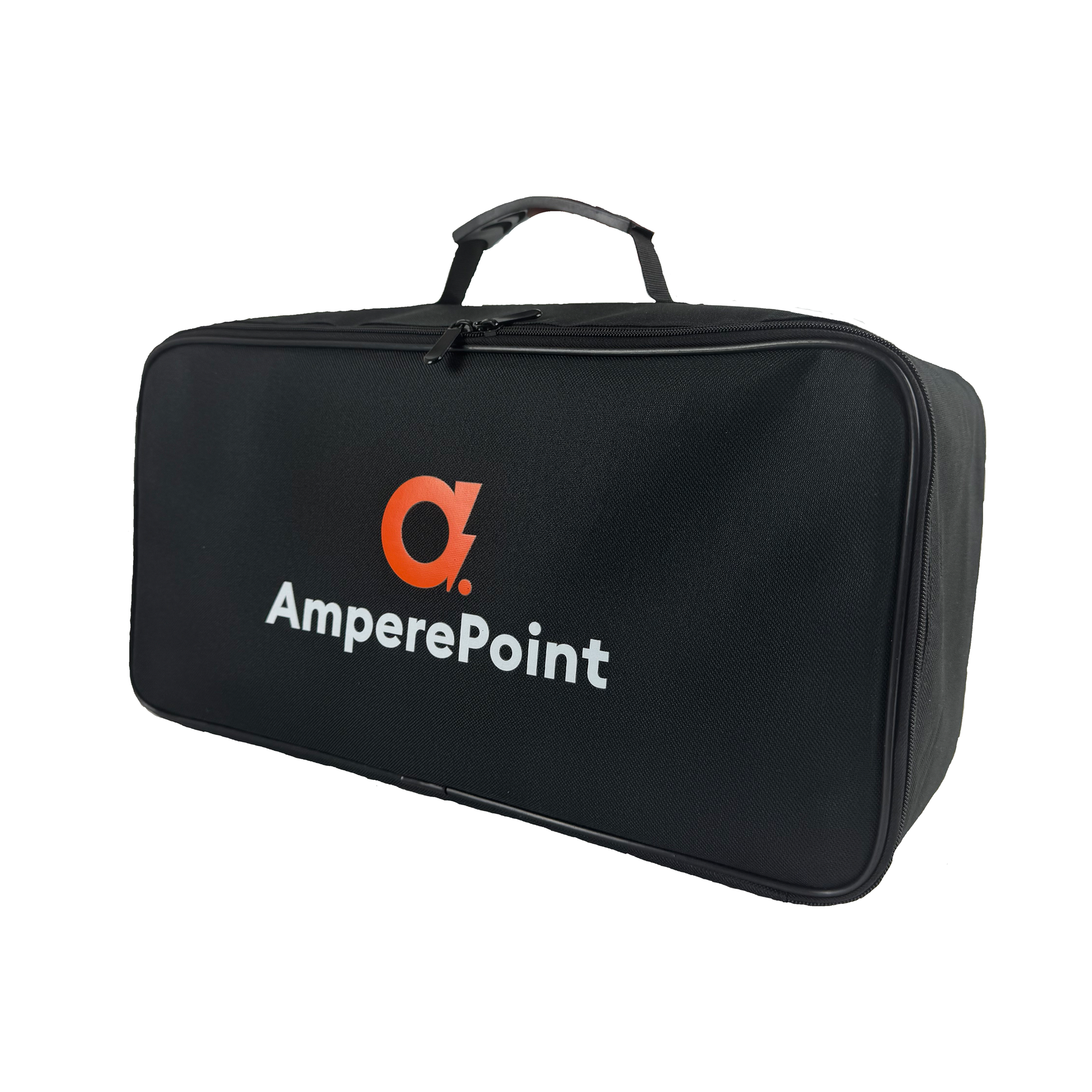

Version 1.5 now available! – What's new:✅ Improved reports in the Tuya app✅ Enhanced waterproofing✅ More detailed error messages✅ Easier current adjustment – the interface suggests how many kWh you'll get based on selected amperage✅ Simplified schedule setup – easily set delay time and charging duration✅ Better presentation of charging info before, during, and after the session✅ Charging session memory – review your last charging session without the mobile app or Wi-Fi✅ New, larger carrying bag

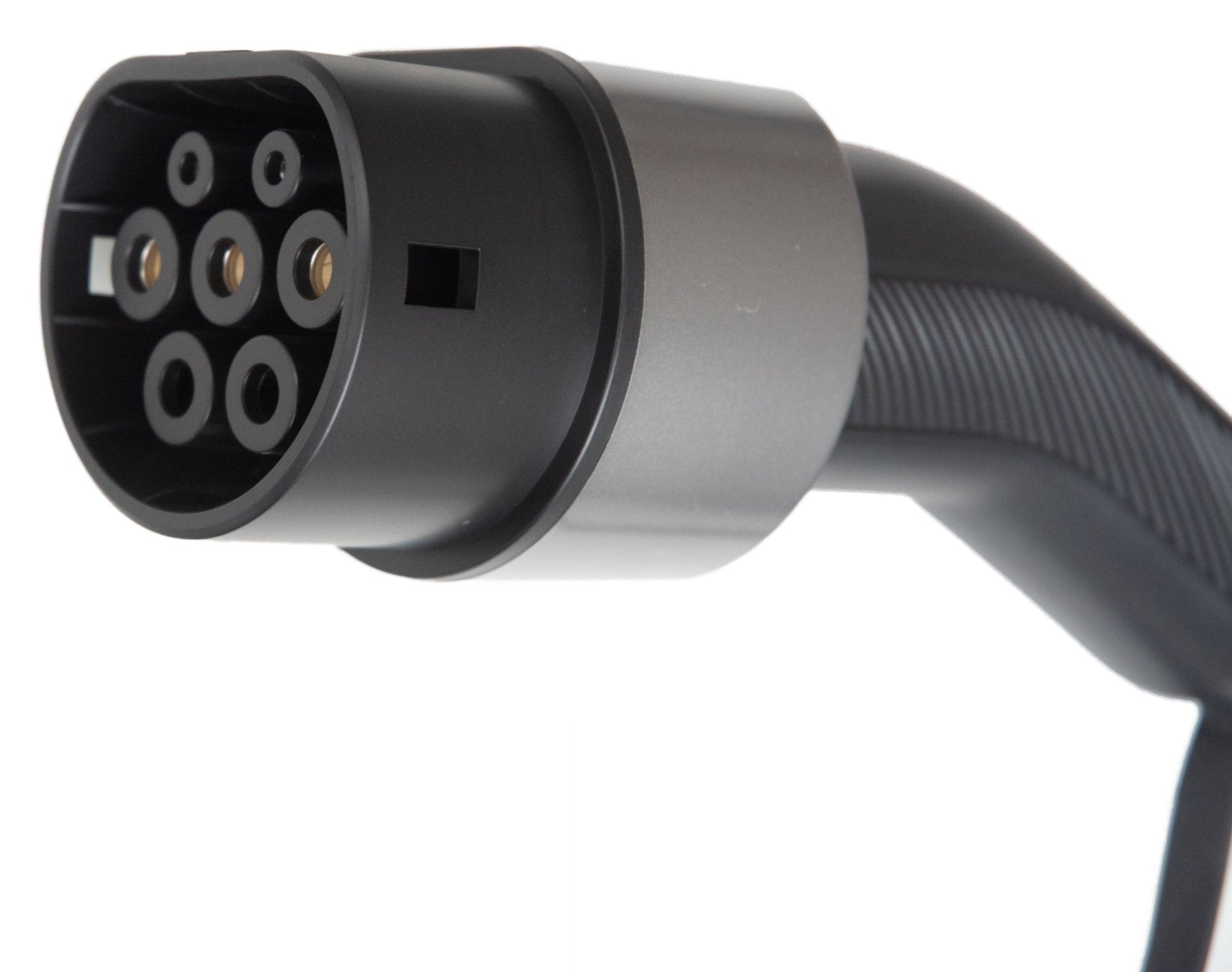

Maximum charging efficiency and comfort – integrated Type 2 cable and charger power of 11 kW (3 x 16A).

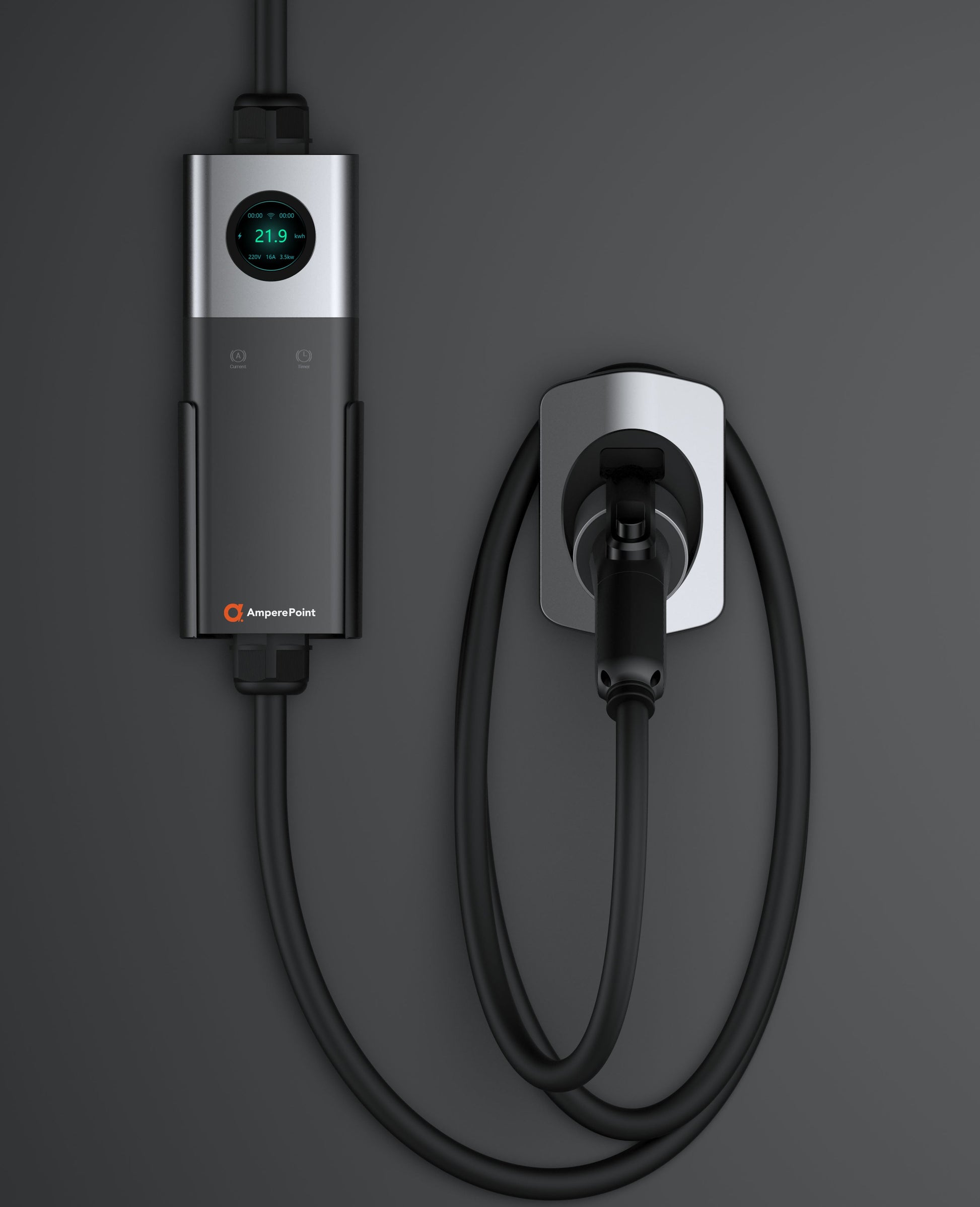

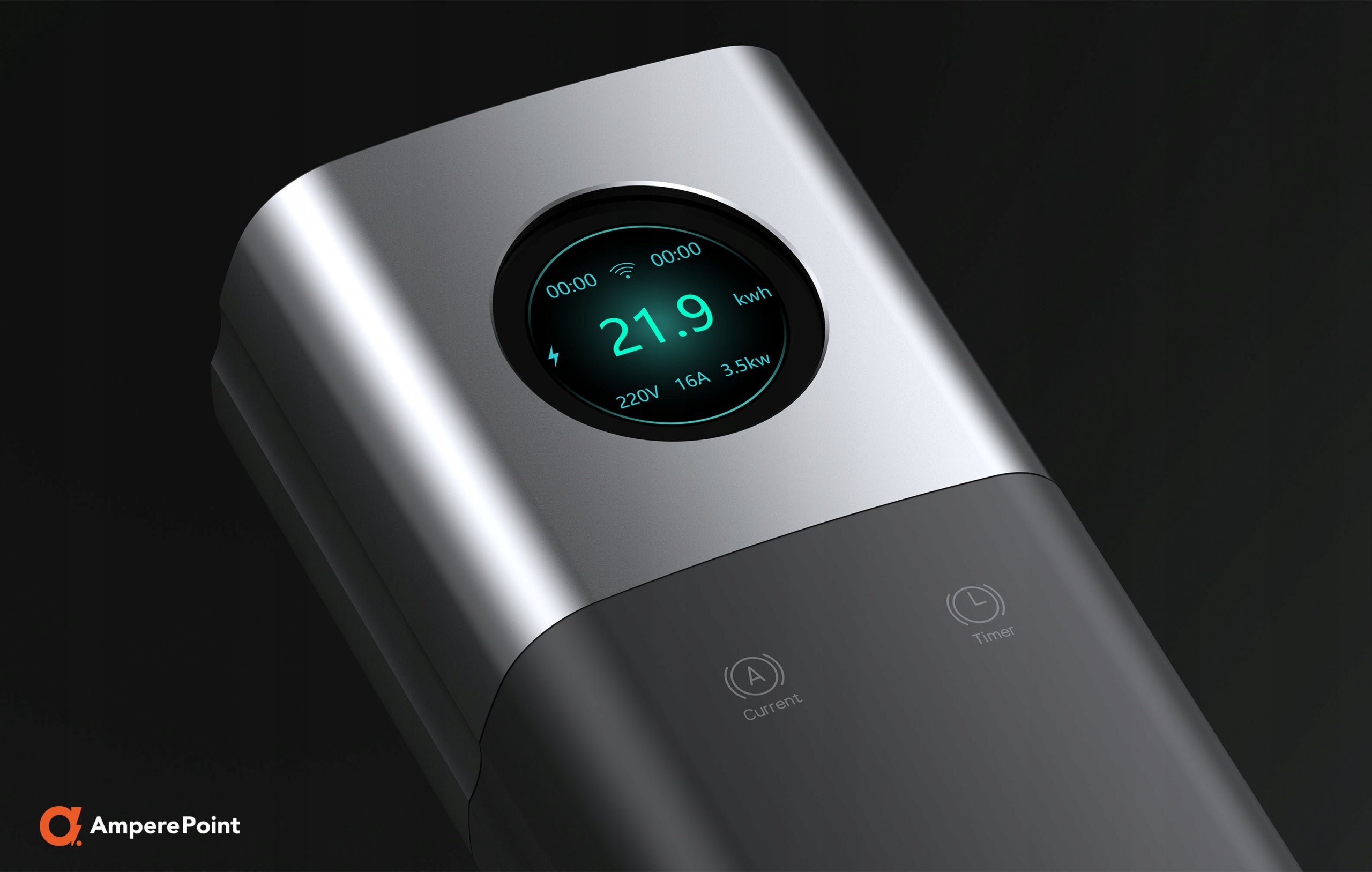

Modern design – equipped with a 2.4" screen that displays the current charging status, energy consumption, and power parameters, allowing you to monitor the charging process. The screen provides information about the charging status, ensuring that everything is running smoothly.

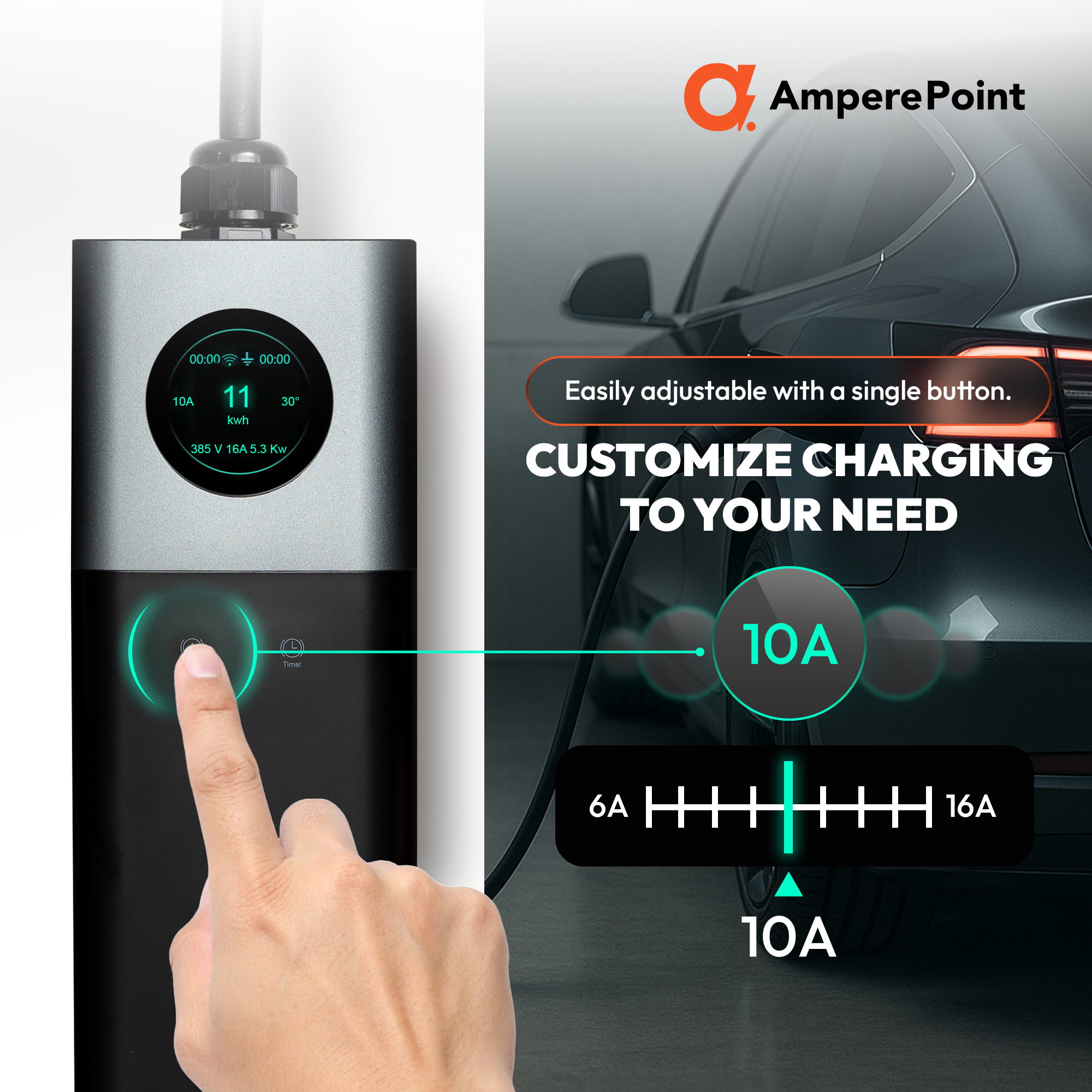

Functions – adjustable charging power (6-16A) and the ability to set a charging schedule to optimize energy usage at optimal rates.
The charger is equipped with an intelligent chip that automatically corrects errors during charging. It reacts in real time whenever any parameter exceeds the norm, ensuring stable operation of the device and the safety of the user, the charger, and the vehicle. With an IP66 certification, the charger guarantees water and dust resistance, making it suitable even for challenging outdoor conditions.
Additionally, the charger offers a range of advanced protective mechanisms, including:
✅ Overvoltage and Undervoltage Protection – Automatic shutdown in case of excessively high voltage (above 265V for single-phase or 459V for three-phase) or excessively low voltage (below 80V). This feature protects the charger and the vehicle from potential damage.
✅ Grounding Protection – Continuous monitoring of the grounding wire’s status. Automatic charging shutdown in case of disconnection or high resistance prevents the risk of electric shock.
✅ Leakage Protection (RCD) – Activated when a leakage current of 30mA AC or 6mA DC is detected, safeguarding the user from electric shocks.
✅ Overcurrent Protection – Automatically disconnects power if the current exceeds a safe threshold (e.g., 35.2A for a 32A charger), preventing overheating and damage to the device and the vehicle.
✅ Lightning Protection – Protects against surges up to 2000V AC or 2500V DC, ensuring safety during storms and power spikes.
The charger is designed with reliability and safety in mind, providing the highest standards of protection for both home and outdoor use.
The product is equipped with a multifunctional 2.4" LCD display, which provides access to all the most important functions such as precise charging power, charging time, current intensity that can be adjusted using the "A" button, and real-time monitoring of the charger's operating temperature, all within easy reach.
1. Delay time2. Charging time3. Energy consumption in kWh4. Total kWh5. Amperage settings6. Voltage measurement
This charger is compatible with all EV (Electric Vehicles) and Plug-in Hybrid vehicles equipped with a Type 2 socket.Examples of Compatible Vehicles:
Buy the Charger in a Set and Save!
Portable Charger Q11 - 16A, 11kW, Type 2
1.299,00 zł
Adapter Type 2 (female) - Type 1 (male)
249,00 zł
Suma:
1.548,00 zł
Ampere Point
Couldn't load pickup availability
Free courier delivery
Testing available
Pickup available at Warehouse - Gdynia
Usually ready within 2 hours
30 days return policy
Professional customer service
Check availability in other stores
Świetny gosc doradzi posłucha spradzi , życze kazdemu takiej obsługi:)
Jestem bardzo zadowolony z działania ładowarki, doceniam możliwość ustawiania parametrów ładowania i ich weryfikacji w aplikacji Tuya Smart.
Excellent workmanship of the device, very good cable and plug. All accessories needed for wall mounting available.
I am pleased with the operation via the Tuya application, because I already have several devices at home using this system.
At this price it is a real best buy.
The choice of charger depends on the vehicle's specifications, such as maximum ACcharging power, the number of phases (single-phase or three-phase), and connectortype (typically Type 2 in Europe). A single-phase vehicle will use only one phase of athree-phase charger. Before purchasing, check your car's maximum AC chargingcapacity or contact us – we’ll gladly help you select the right equipment.
Yes, but this method has limitations. Charging from a standard 230V outlet allows amaximum current of 16A, which equals about 3.7 kW. Some vehicles, especiallyplug-in hybrids, do not support faster charging.
Charging time depends on the battery capacity, charger power, and type of current(AC/DC). As a rule of thumb, a car with a 50 kWh battery and an 11 kW charger willtake approximately 50 ÷ 11 = 4.5 hours to charge. This is an estimate that can varybased on factors like the car's onboard charger efficiency, charging efficiency, batterycondition, and ambient temperature.
Yes, home charging is usually more economical. The average electricity cost inPoland ranges from 0 (e.g., solar panels) to 1 PLN/kWh, resulting in a cost of driving100 km at around 0–15 PLN. Public station costs can range from 1.50 PLN/kWh to3.50 PLN/kWh or more, depending on the operator and charging type.
In single-family homes, special permission is usually not required, but it's a good ideato consult an electrician to ensure compliance with regulations. In multi-familybuildings, approval from the housing association or building manager may benecessary.
Yes, all our chargers are certified with water and moisture protection (IP65, IP66 –depending on the model).
It is not recommended to use extension cords for charging electric cars. Standardextension cords may not handle high power loads, which could lead to overheating oreven fire. If you must use an extension cord, it should be specifically designed forhigh power, meet appropriate quality standards, and be approved by the chargermanufacturer.
